FAD-GDH System
Blood sample:fresh capillary whole blood, venous whole blood
Calibration sample:venous plasma
Test range:20-600mg/dL(1.1-33.3mmol/L)
Test time:5s
Blood volume:0.6ul
HCT:30-60%
Expiry date:24 months
Memory:10 test results
Battery lifetime:above 1000 times
First step: prepare the components you will use

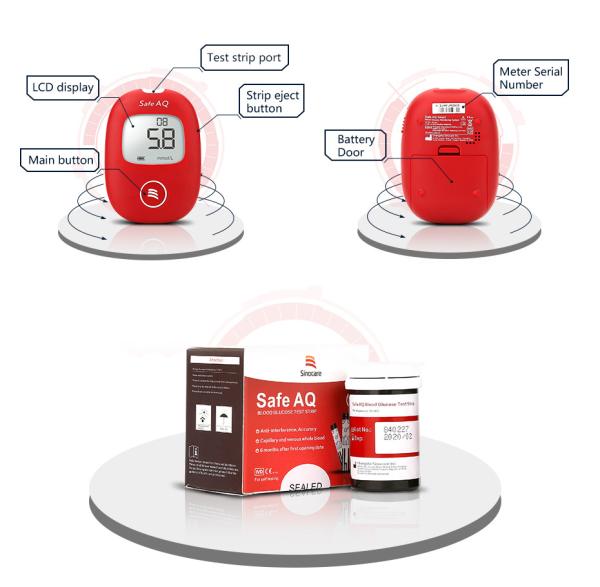

| 1 | Batteries |
| 2 | Glucometer |
| 3 | Strip vial |
| 4 | Lancing device |
| 5 | Lancets |
Wash your hands, rinse and dry completely.
Screw off the cap of the lancing device. Insert a lancet into the
lancet holder and push down until is fully seated. Note that the
lancet is for one-time use only
Twist off the protective cap until it separates from the lancets.
Replace the lancing device cap and set the puncture depth to the
desired number.
Pull back the cocking control until it makes a click, and then
release. Now the lancing device is ready to use.
Remove a new test strip within the valid expiration from vial.
After taking the strip, immediately cover the vial. To avoid losing
efficiency. Insert test strip into the strip slot, the test strip
is suggested to use up within 3 minutes. The meter turns on
automatically. When the blood symbol starts blinking, the meter is
ready to use.
Use a 75% cotton ball with alcohol at the blood sample site for
disinfection, be careful not to use iodine or disinfectant
containing "iodine" disinfectant. Once the alcohol has evaporated
cleanly, align the prepared puncture device with the disinfected
skin and press the button to collect the blood. Use your thumb to
resist the lower part of the puncture device to help the blood draw
..
To obtain best accurate results, wipe off the first drop of blood
and squeeze another.Apply the blood sample to the opening of the
absorbent channel of the test strip until the confirmation window
is fully covered with blood. The meter will display your blood
glucose value after several seconds.
Push strip ejector to eject the tested strip automatically, twist
off the lancets, cover its cap and place it properly according to
Medical Waste Management Regulations.
